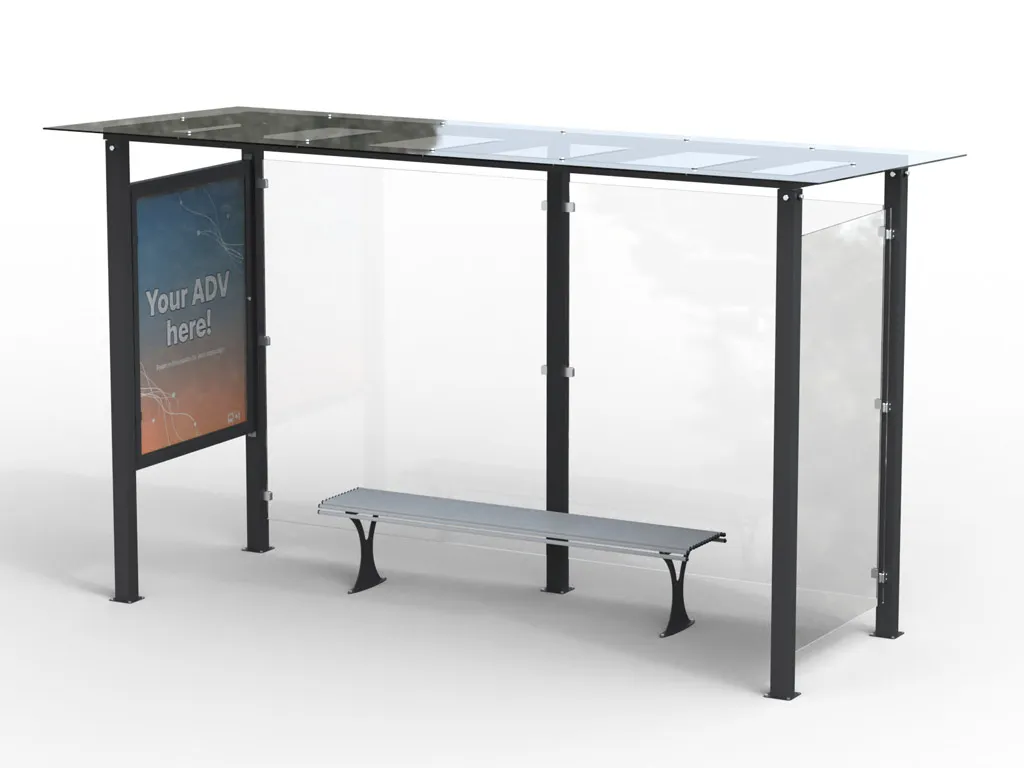

A 3.4m long bus shelter featuring a single PMMA sheet roof, complete with an integrated bench for passenger comfort.
General Technical Specifications:
Structure made with elements painted according to a 5P coating cycle;
Module composed of straight steel upright tubes (80 x 80 mm section) bolted to the roof structure;
Base plates with M10 anchor bolts for securing the tubes to the ground;
Mesh roof frame constructed with tubulars, supporting a polycarbonate sheet;
The roof is designed to accommodate photovoltaic panels, powering the system;
Rear panels and side infills securely attached to the structure with dedicated steel clamps;
Bench seat crafted with 6 mm thick sheet metal side supports and a seating surface composed of 16 x 20 mm rods.
Overall Dimensions:
1600 x 4000 x 2300 mm (H)
